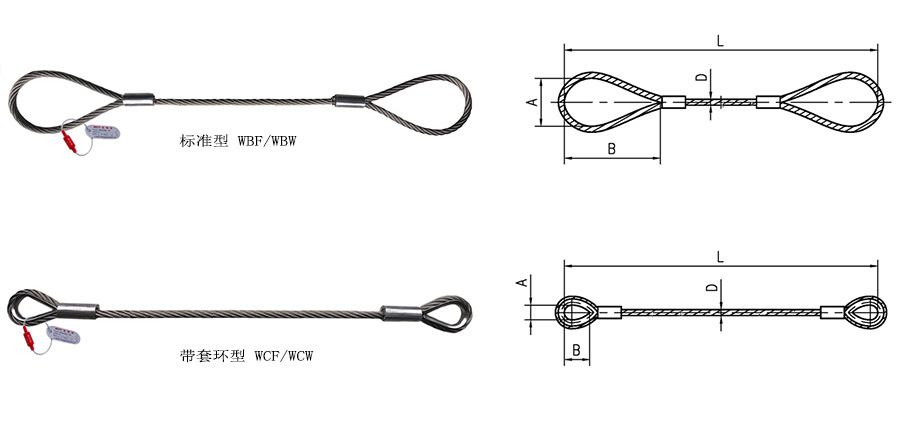

壓制鋼絲繩索具
執行標準：GB/T 16762-2009
安全系數：5
制造材料：鋼絲繩
產品顏色：金屬色
|
規格型號 |
繩徑 |
尺寸mm |
額載 |
|||||||
|
標準型 |
帶套環型 |
mm |
標準型 |
帶套環型 |
KN |
|||||
|
麻芯 |
鋼芯 |
麻芯 |
鋼芯 |
D |
A |
B |
A |
B |
麻芯 |
鋼芯 |
|
- |
WBW03 |
- |
WCW03 |
3 |
45 |
90 |
11.5 |
19 |
- |
1.3 |
|
- |
WBW05 |
- |
WCW05 |
5 |
75 |
150 |
13 |
20.5 |
- |
3.37 |
|
WBF06 |
WBW06 |
WCF06 |
WCW06 |
6 |
90 |
180 |
15 |
24 |
3.2 |
3.4 |
|
WBF07 |
WBW07 |
WCF07 |
WCW07 |
7 |
95 |
190 |
18 |
29 |
4.3 |
4.7 |
|
WBF08 |
WBW08 |
WCF08 |
WCW08 |
8 |
105 |
210 |
20 |
35 |
5.7 |
6.1 |
|
WBF09 |
WBW09 |
WCF09 |
WCW09 |
9 |
115 |
230 |
24 |
39 |
7.2 |
7.8 |
|
WBF10 |
WBW10 |
WCF10 |
WCW10 |
10 |
115 |
230 |
24 |
39 |
8.9 |
9.6 |
|
WBF11 |
WBW11 |
WCF11 |
WCW11 |
11 |
125 |
250 |
28.5 |
44 |
11 |
12 |
|
WBF12 |
WBW12 |
WCF12 |
WCW12 |
12 |
130 |
260 |
28.5 |
44 |
13 |
14 |
|
WBF13 |
WBW13 |
WCF13 |
WCW13 |
13 |
130 |
260 |
30 |
50 |
15 |
16 |
|
WBF14 |
WBW14 |
WCF14 |
WCW14 |
14 |
140 |
280 |
32 |
50 |
17 |
19 |
|
WBF16 |
WBW16 |
WCF16 |
WCW16 |
16 |
160 |
320 |
38 |
58 |
23 |
24 |
|
WBF18 |
WBW18 |
WCF18 |
WCW18 |
18 |
180 |
360 |
40 |
63 |
29 |
31 |
|
WBF20 |
WBW20 |
WCF20 |
WCW20 |
20 |
200 |
400 |
45 |
71 |
35 |
38 |
|
WBF22 |
WBW22 |
WCF22 |
WCW22 |
22 |
220 |
440 |
50 |
78 |
43 |
46 |
|
WBF24 |
WBW24 |
WCF24 |
WCW24 |
24 |
240 |
480 |
56 |
91 |
51 |
55 |
|
WBF26 |
WBW26 |
WCF26 |
WCW26 |
26 |
260 |
520 |
62 |
97 |
60 |
65 |
|
WBF28 |
WBW28 |
WCF28 |
WCW28 |
28 |
280 |
560 |
70 |
114 |
69 |
75 |
|
WBF30 |
WBW30 |
WCF30 |
WCW30 |
30 |
300 |
600 |
75 |
122 |
80 |
86 |
|
WBF32 |
WBW32 |
WCF32 |
WCW32 |
32 |
320 |
640 |
79.5 |
130 |
91 |
98 |
|
WBF34 |
WBW34 |
WCF34 |
WCW34 |
34 |
340 |
680 |
95 |
153 |
102 |
110 |
|
WBF36 |
WBW36 |
WCF36 |
WCW36 |
36 |
360 |
720 |
95 |
164 |
115 |
124 |
|
WBF38 |
WBW38 |
WCF38 |
WCW38 |
38 |
380 |
760 |
110 |
180 |
128 |
138 |
|
WBF40 |
WBW40 |
WCF40 |
WCW40 |
40 |
400 |
800 |
117 |
190 |
142 |
153 |
|
WBF42 |
WBW42 |
WCF42 |
WCW42 |
42 |
420 |
840 |
120 |
201 |
157 |
169 |
|
WBF44 |
WBW44 |
WCF44 |
WCW44 |
44 |
440 |
880 |
135 |
250 |
172 |
185 |
|
WBF46 |
WBW46 |
WCF46 |
WCW46 |
46 |
460 |
920 |
135 |
260 |
187 |
203 |
|
WBF48 |
WBW48 |
WCF48 |
WCW48 |
48 |
480 |
960 |
135 |
260 |
203 |
220 |
|
WBF50 |
WBW50 |
WCF50 |
WCW50 |
50 |
500 |
1000 |
135 |
267 |
221 |
240 |
|
WBF52 |
WBW52 |
WCF52 |
WCW52 |
52 |
520 |
1040 |
150 |
270 |
239 |
259 |
|
WBF54 |
WBW54 |
WCF54 |
WCW54 |
54 |
540 |
1080 |
150 |
270 |
258 |
279 |
|
WBF56 |
WBW56 |
WCF56 |
WCW56 |
56 |
560 |
1120 |
150 |
270 |
277 |
301 |
|
WBF58 |
WBW58 |
WCF58 |
WCW58 |
58 |
580 |
1160 |
150 |
281 |
298 |
322 |
|
WBF60 |
WBW60 |
WCF60 |
WCW60 |
60 |
600 |
1200 |
150 |
300 |
319 |
345 |
|
WBF62 |
WBW62 |
-- |
-- |
62 |
620 |
1240 |
|
|
290 |
343 |
|
WBF64 |
WBW64 |
-- |
-- |
64 |
640 |
1280 |
|
|
309 |
365 |
|
WBF66 |
WBW66 |
-- |
-- |
66 |
660 |
1320 |
|
|
329 |
389 |
|
WBF68 |
WBW68 |
-- |
-- |
68 |
680 |
1360 |
|
|
349 |
413 |
|
WBF70 |
WBW70 |
-- |
-- |
70 |
700 |
1400 |
|
|
370 |
437 |
|
WBF72 |
WBW72 |
-- |
-- |
72 |
720 |
1440 |
|
|
391 |
463 |
|
WBF74 |
WBW74 |
-- |
-- |
74 |
740 |
1480 |
|
|
413 |
489 |
|
WBF76 |
WBW76 |
-- |
-- |
76 |
760 |
1520 |
|
|
436 |
516 |
|
WBF78 |
WBW78 |
-- |
-- |
78 |
780 |
1560 |
|
|
459 |
543 |
|
WBF80 |
WBW80 |
-- |
-- |
80 |
800 |
1600 |
|
|
483 |
571 |
|
WBF82 |
WBW82 |
-- |
-- |
82 |
820 |
1640 |
|
|
507 |
600 |
|
WBF84 |
WBW84 |
-- |
-- |
84 |
840 |
1680 |
|
|
532 |
630 |
|
WBF86 |
WBW86 |
-- |
-- |
86 |
860 |
1720 |
|
|
558 |
660 |
|
WBF88 |
WBW88 |
-- |
-- |
88 |
880 |
1760 |
|
|
584 |
691 |
|
WBF90 |
WBW90 |
-- |
-- |
90 |
900 |
1800 |
|
|
611 |
723 |
|
WBF92 |
WBW92 |
-- |
-- |
92 |
920 |
1840 |
|
|
639 |
756 |
|
WBF94 |
WBW94 |
-- |
-- |
94 |
940 |
1880 |
|
|
667 |
789 |
|
WBF96 |
WBW96 |
-- |
-- |
96 |
960 |
1920 |
|
|
695 |
823 |
|
WBF98 |
WBW98 |
-- |
-- |
98 |
980 |
1960 |
|
|
725 |
857 |
|
WBF100 |
WBW100 |
-- |
-- |
100 |
1000 |
2000 |
|
|
755 |
893 |
|
WBF102 |
WBW102 |
-- |
-- |
102 |
1020 |
2040 |
|
|
785 |
929 |
|
WBF104 |
WBW104 |
-- |
-- |
104 |
1040 |
2080 |
|
|
816 |
966 |
|
WBF106 |
WBW106 |
-- |
-- |
106 |
1060 |
2120 |
|
|
848 |
1003 |
|
WBF108 |
WBW108 |
-- |
-- |
108 |
1080 |
2160 |
|
|
880 |
1041 |
