G2150卸扣
執行標準：ISO2415-2004
安全系數：4
制造材料：合金鋼
產品顏色：銀色
|
產品型號 |
額載 |

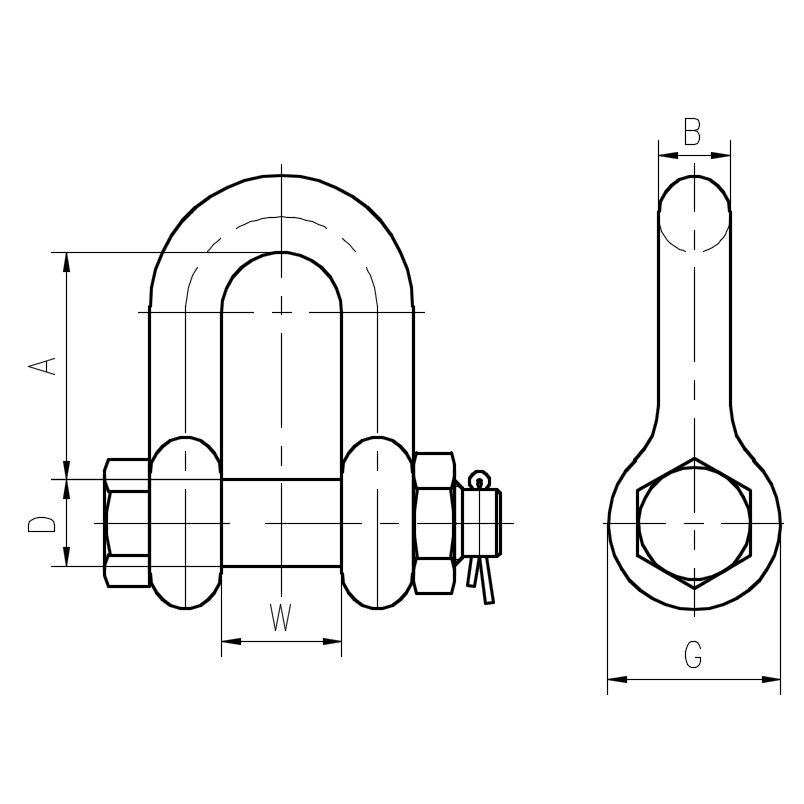

尺寸 |
自重 kg/只 |
|||||
|
W |
D |
A |
B |
G |
H |
|||
|
S-DX0.5-1/4 |
0.5 |
11.9 |
7.9 |
19.1 |
6.4 |
15.5 |
40.4 |
0.06 |
|
S-DX0.75-5/16 |
0.75 |
13.5 |
9.7 |
25.4 |
7.9 |
19.1 |
48.5 |
0.10 |
|
S-DX1-3/8 |
1 |
16.8 |
11.2 |
31 |
9.7 |
23.1 |
58.4 |
0.13 |
|
S-DX1.5-7/16 |
1.5 |
19.1 |
12.7 |
36.1 |
11.2 |
26.9 |
67.6 |
0.21 |
|
S-DX2-1/2 |
2 |
20.6 |
16.0 |
41.4 |
12.7 |
30.2 |
77 |
0.28 |
|
S-DX3.25-5/8 |
3.25 |
26.9 |
19.1 |
50.8 |
16.0 |
38.1 |
95.3 |
0.6 |
|
S-DX4.75-3/4 |
4.75 |
31.8 |
22.4 |
60.5 |
19.1 |
46.0 |
115.1 |
1.04 |
|
S-DX6.5-7/8 |
6.5 |
36.6 |
25.4 |
71.4 |
22.4 |
53.1 |
135.4 |
1.63 |
|
S-DX8.5-1 |
8.5 |
42.9 |
28.7 |
81 |
25.4 |
60.5 |
150.6 |
2.38 |
|
S-DX9.5-1 1/8 |
9.5 |
45.0 |
31.8 |
90.9 |
28.7 |
68.3 |
172.2 |
3.59 |
|
S-DX12-1 1/4 |
12 |
51.6 |
35.1 |
100 |
31.8 |
76.2 |
190.5 |
4.65 |
|
S-DX13.5-1 3/8 |
13.5 |
57.2 |
38.1 |
111.3 |
35.1 |
84.1 |
210.3 |
6.71 |
|
S-DX17-1 1/2 |
17 |
60.5 |
41.4 |
122.2 |
38.1 |
92.2 |
230.1 |
8.05 |
|
S-DX25-1 3/4 |
25 |
73.2 |
50.8 |
146.1 |
44.5 |
106.4 |
278.6 |
13.18 |
|
S-DX35-2 |
35 |
82.6 |
57.2 |
171.5 |
50.8 |
122.2 |
311.9 |
19.3 |
|
S-DX55-2 1/2 |
55 |
104.9 |
70.0 |
203.2 |
66.5 |
144.5 |
377 |
37.22 |
|
S-DX85-3 |
85 |
127.0 |
82.6 |
215.9 |
76.0 |
165.1 |
428.8 |
65.3 |
