吊環螺釘
執行標準：GB/T825-88
安全系數：4
制造材料：合金鋼
產品顏色：銀色
|
產品型號 |
額定載荷 |

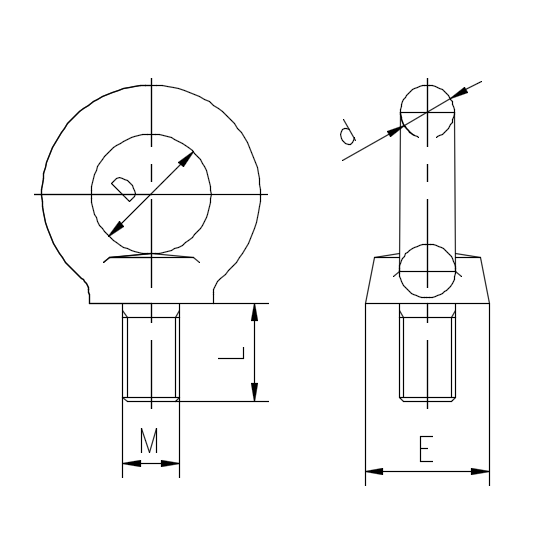

尺寸mm |
自 重 |
||||
|
T |
M |
L |
D |
E |
d |
Kg |
|
|
GB-M8 |
0.16 |
8 |
16 |
20 |
21 |
9 |
0.04 |
|
GB-M10 |
0.25 |
10 |
20 |
24 |
25 |
11 |
0.08 |
|
GB-M12 |
0.4 |
12 |
22 |
28 |
29 |
13 |
0.2 |
|
GB-M16 |
0.63 |
16 |
28 |
34 |
35 |
15 |
0.28 |
|
GB-M20 |
1 |
20 |
35 |
40 |
41 |
17 |
0.42 |
|
GB-M24 |
1.6 |
24 |
40 |
48 |
49 |
21 |
0.84 |
|
GB-M30 |
2.5 |
30 |
45 |
56 |
57 |
25 |
1.3 |
|
GB-M36 |
4 |
36 |
55 |
67 |
69 |
30 |
2.2 |
|
GB-M42 |
6.3 |
42 |
65 |
80 |
82 |
34 |
3.88 |
|
GB-M48 |
8 |
48 |
70 |
95 |
97 |
40 |
6 |
|
GB-M56 |
10 |
56 |
80 |
112 |
114 |
44 |
9.4 |
|
GB-M64 |
16 |
64 |
90 |
125 |
128 |
51 |
13.6 |
|
GB-M72×6 |
20 |
72 |
100 |
140 |
143 |
63 |
20.76 |
|
GB-M80×6 |
25 |
80 |
115 |
160 |
163 |
71 |
28.89 |
|
GB-M100×6 |
40 |
100 |
140 |
200 |
204 |
79 |
42.27 |
